View larger
Images are for illustrative purposes only. Please refer to data sheet for details

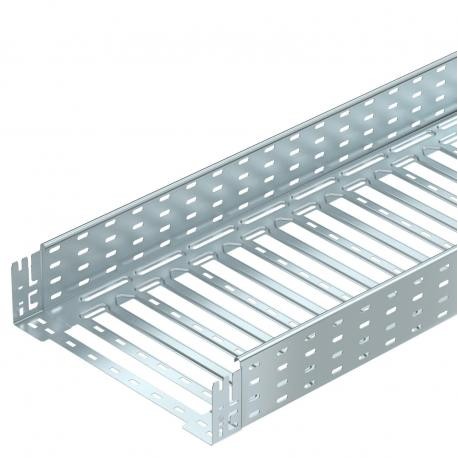

MKSM 140 FS 6059164 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x400x3050, Strip-galv..
MKSM 140 FS
6059164
OBO BETTERMANN
3 m.
Cable tray MKSM perforated with quick connector, 110x400x3050, Strip-galvanised, DIN EN 10147, Steel, St
MKSM MKSM 140 FS cable tray, perforated, with needle. 110x400x3050 Steel, St, galvanized strip, DIN EN 10346
MKS-Magic® 110 FS cable tray. Cable tray with integrated quick fixing system. The usable length of the cable tray is 3,000 mm.La cable tray has a continuous side perforation of 7 x 20 mm for the installation of additional joining and mounting components. From a tray width of 200 mm, with 30% perforation percentage, suitable according to the VdS 2092 standard for use under fire sprinkler systems.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
MKSM 110 = medium-duty Magic cable tray system with a side height of 110 mm
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 400 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3050 mm |
| Working length (EF006318) | 3000 mm |
| Useful cross section (EF005140) | 43800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Integrated coupler |
| Type of connector (EF000141) | Click in |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 3.69 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1800 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1300 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 930 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 700 |
