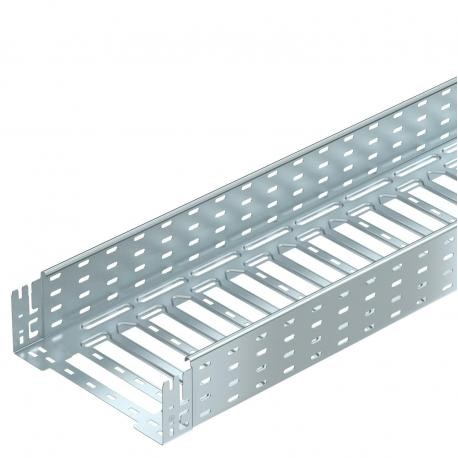

OBO BETTERMANN MKSM 130 FS MKSM 130 FS 6059162 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x300x3050, Strip-galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 130 FS 6059162 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x300x3050, Strip-galv..

MKSM 130 FS

6059162

OBO BETTERMANN

3 m.

Cable tray MKSM perforated with quick connector, 110x300x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray MKS-Magic® 110 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a perforated cable tray, the MKSM 130 FS manufactured by Obo Bettermann routes and supports electrical cabling in industrial and commercial installations. Perforated trays allow ventilation and simplify cable tie-offs throughout complex wiring arrays. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 9,7698 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 110x300x3050
  • Dimension B: 300 mm
  • Dimension L: 180 mm
  • Dimension x: 196 mm
  • Dimension y: 262 mm
  • Height: 110 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate9,7698 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x300x3050
Dimension B300 mm
Dimension L180 mm
Dimension x196 mm
Dimension y262 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8A
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m1,8 kN/m
Support spacing 2.0 m1,3 kN/m
Support spacing 2.5 m0,93 kN/m
Support spacing 3.0 m0,7 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section32800 mm²
Usable cross-section328 cm²
Usable length3000 mm
Wide-span versionno
Width300 mm
With coverno
