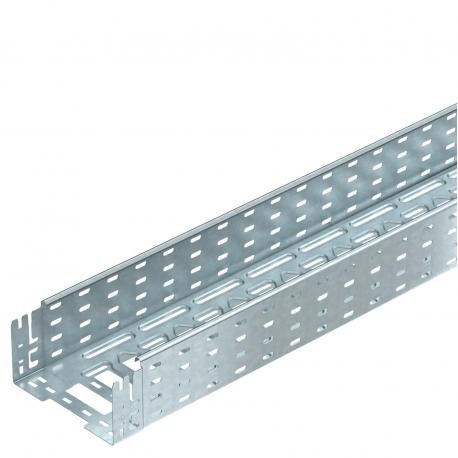

OBO BETTERMANN MKSM 120 FT MKSM 120 FT 6059177 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x200x3050, Hot-dip ga.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MKSM 120 FT 6059177 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x200x3050, Hot-dip ga..

MKSM 120 FT

6059177

OBO BETTERMANN

3 m.

Cable tray MKSM perforated with quick connector, 110x200x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray MKS-Magic® 110 FT. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated cable containment trays provide dependable mechanical pathways for electrical distribution, allowing adequate airflow around active cables. The Obo Bettermann MKSM 120 FT includes a hot-dip galvanized finish and quick connector elements for efficient assembly.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 8,0488 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 110x200x3050
  • Dimension B: 200 mm
  • Dimension L: 80 mm
  • Dimension x: 96 mm
  • Dimension y: 162 mm
  • Height: 110 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate8,0488 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x200x3050
Dimension B200 mm
Dimension L80 mm
Dimension x96 mm
Dimension y162 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m2 kN/m
Support spacing 2.0 m1,5 kN/m
Support spacing 2.5 m1,07 kN/m
Support spacing 3.0 m0,7 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section218 cm²
Usable cross-section21800 mm²
Usable length3000 mm
Wide-span versionno
Width200 mm
With coverno
