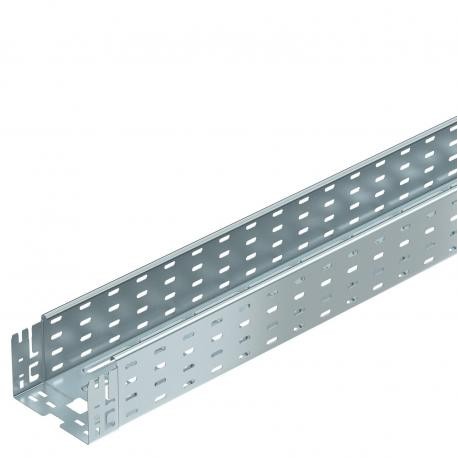

MKSM 115 FS 6059158 OBO BETTERMANN Cable tray MKSM perforated with quick connector, 110x150x3050, Strip-galv..
MKSM 115 FS
6059158
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann MKSM 115 FS cable tray MKSM perforated with quick connector is an essential infrastructure component used to route, organize, and protect electrical cables in commercial buildings and manufacturing plants. Cable trays maintain proper bend radius and secure mechanical support throughout a facility.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,1092 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x150x3050
- Dimension B: 150 mm
- Dimension L: 30 mm
- Dimension x: 46 mm
- Dimension y: 112 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,1092 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x150x3050 |
| Dimension B | 150 mm |
| Dimension L | 30 mm |
| Dimension x | 46 mm |
| Dimension y | 112 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| NEMA load class | 8A |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2 kN/m |
| Support spacing 2.0 m | 1,5 kN/m |
| Support spacing 3.0 m | 0,7 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 161 cm² |
| Usable cross-section | 16100 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 150 mm |
| With cover | no |
