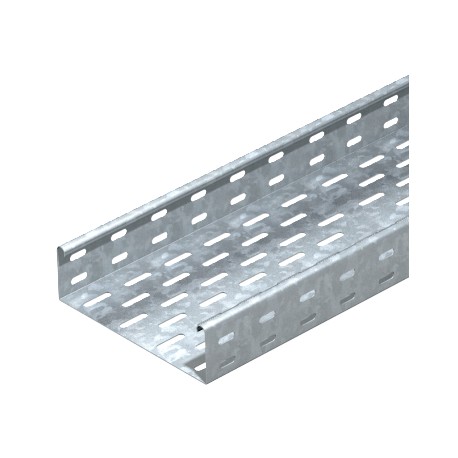

OBO BETTERMANN EKS 650 FT EKS 650 FT 6056989 OBO BETTERMANN Cable tray EKS perforated, 60x500x3000, Hot-dip galvanised, DIN EN ISO 146.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EKS 650 FT 6056989 OBO BETTERMANN Cable tray EKS perforated, 60x500x3000, Hot-dip galvanised, DIN EN ISO 146..

EKS 650 FT

6056989

OBO BETTERMANN

3 m.

Cable tray EKS perforated, 60x500x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray EKS 60 FT. EKS 60 = Extra-heavy cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann EKS 650 FT cable tray EKS perforated serves as a reliable raceway for routing electrical cables and wiring systems across industrial facilities. Tray systems like this protect infrastructure from mechanical stress while maintaining organized pathways for power distribution and control networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 23,7839 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 60x500x3000
  • Dimension: 60 x 500
  • Dimension B: 500 mm
  • Height: 60 mm
  • Height: 2 in
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 0,1 in
  • Plate thickness: 2 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate23,7839 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension60x500x3000
Dimension60 x 500
Dimension B500 mm
Height60 mm
Height2 in
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness0,1 in
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m2,1 kN/m
Support spacing 2.0 m1,35 kN/m
Support spacing 2.5 m1,15 kN/m
Support spacing 3.0 m0,9 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemScrewed
Usable cross-section29800 mm²
Usable cross-section298 cm²
Wide-span versionno
Width500 mm
Width20 in
With coverno
