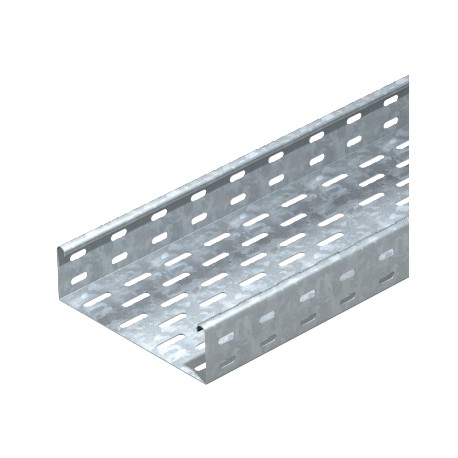

EKS 650 FS 6056520 OBO BETTERMANN Cable tray EKS perforated, 60x500x3000, Strip-galvanised, DIN EN 10147, St..
EKS 650 FS
6056520
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann perforated cable tray (part number EKS 650 FS) offers a broad, ventilated metal trough designed to support extensive cabling networks across infrastructure and manufacturing projects. The perforated base layout facilitates airflow and simplifies cable tie-downs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 22,5777 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x500x3000
- Dimension: 60 x 500
- Dimension B: 500 mm
- Height: 2 in
- Height: 60 mm
- Length: 118 ft
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
- Plate thickness: 0,1 in
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 22,5777 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x500x3000 |
| Dimension | 60 x 500 |
| Dimension B | 500 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 118 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 0,1 in |
| Plate thickness | 2 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2,1 kN/m |
| Support spacing 2.0 m | 1,35 kN/m |
| Support spacing 2.5 m | 1,15 kN/m |
| Support spacing 3.0 m | 0,9 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 298 cm² |
| Usable cross-section | 29800 mm² |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
| With cover | no |
