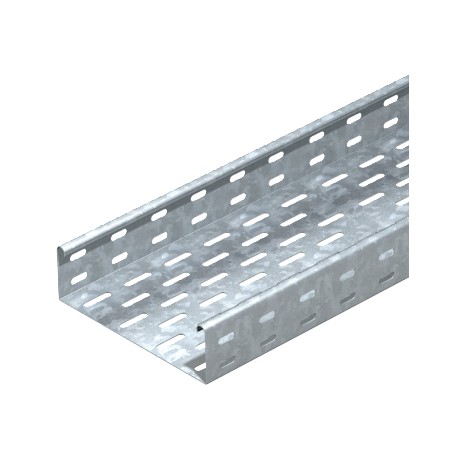

EKS 640 FT 6056970 OBO BETTERMANN Cable tray EKS perforated, 60x400x3000, Hot-dip galvanised, DIN EN ISO 146..
EKS 640 FT
6056970
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann EKS 640 FT cable tray EKS perforated provides a secure structural path for organizing and containing power cables, control lines, and data wiring. Cable trays ensure clean routing and straightforward installation across various industrial and commercial building segments.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 23,4188 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60 x 400
- Dimension: 60x400x3000
- Dimension B: 400 mm
- Height: 60 mm
- Height: 2 in
- Length: 3000 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
- Plate thickness: 2 mm
- Plate thickness: 0,1 in
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 23,4188 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60 x 400 |
| Dimension | 60x400x3000 |
| Dimension B | 400 mm |
| Height | 60 mm |
| Height | 2 in |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Plate thickness | 0,1 in |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2,6 kN/m |
| Support spacing 2.0 m | 1,7 kN/m |
| Support spacing 2.5 m | 1,4 kN/m |
| Support spacing 3.0 m | 0,95 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 238 cm² |
| Usable cross-section | 23800 mm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 16 in |
| With cover | no |
