View larger
Images are for illustrative purposes only. Please refer to data sheet for details

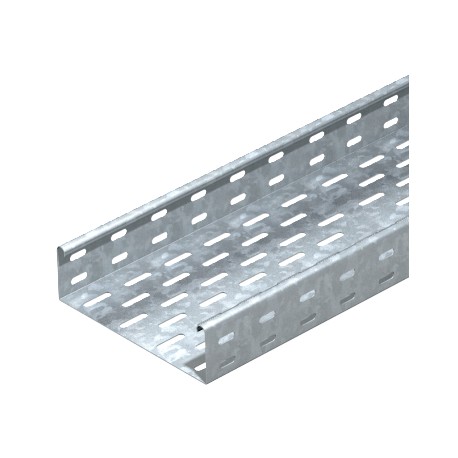

EKS 640 FS 6056423 OBO BETTERMANN Cable tray EKS perforated, 60x400x3000, Strip-galvanised, DIN EN 10147, St..
EKS 640 FS
6056423
OBO BETTERMANN
3 m.
Cable tray EKS perforated, 60x400x3000, Strip-galvanised, DIN EN 10147, Steel, St
Cable tray EKS 60 FS. EKS 60 = extra-heavy cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 26,3348 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x400x3000 |
| Dimension | 60 x 400 |
| Dimension B | 400 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 118 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 2 mm |
| Plate thickness | 0,1 in |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 2,6 kN/m |
| Support spacing 2.0 m | 1,7 kN/m |
| Support spacing 2.5 m | 1,4 kN/m |
| Support spacing 3.0 m | 0,95 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 23800 mm² |
| Usable cross-section | 238 cm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 16 in |
| With cover | no |
