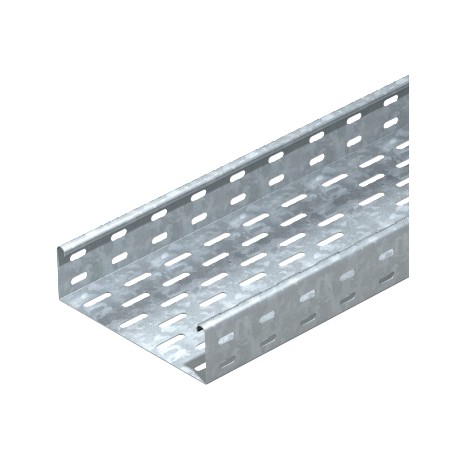

OBO BETTERMANN EKS 610 FT EKS 610 FT 6056776 OBO BETTERMANN Cable tray EKS perforated, 60x100x3000, Hot-dip galvanised, DIN EN ISO 146.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EKS 610 FT 6056776 OBO BETTERMANN Cable tray EKS perforated, 60x100x3000, Hot-dip galvanised, DIN EN ISO 146..

EKS 610 FT

6056776

OBO BETTERMANN

3 m.

Cable tray EKS perforated, 60x100x3000, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray EKS 60 FT. EKS 60 = Extra-heavy cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Obo Bettermann EKS 610 FT cable tray EKS perforated, 60x100x3000, Hot-dip galvanised, DIN EN ISO 146.. supports and structures network cables, power lines, and instrumentation wiring securely along industrial pathways. Perforated trays are widely implemented to accommodate ventilation and straightforward cable tie-downs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 7,9329 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 60 x 100
  • Dimension: 60x100x3000
  • Dimension B: 100 mm
  • Height: 2 in
  • Height: 60 mm
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 2 mm
  • Plate thickness: 0,1 in

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate7,9329 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension60 x 100
Dimension60x100x3000
Dimension B100 mm
Height2 in
Height60 mm
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness2 mm
Plate thickness0,1 in
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m3,3 kN/m
Support spacing 2.0 m2,2 kN/m
Support spacing 2.5 m1,6 kN/m
Support spacing 3.0 m0,95 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemScrewed
Usable cross-section58 cm²
Usable cross-section5800 mm²
Wide-span versionno
Width100 mm
Width4 in
With coverno
