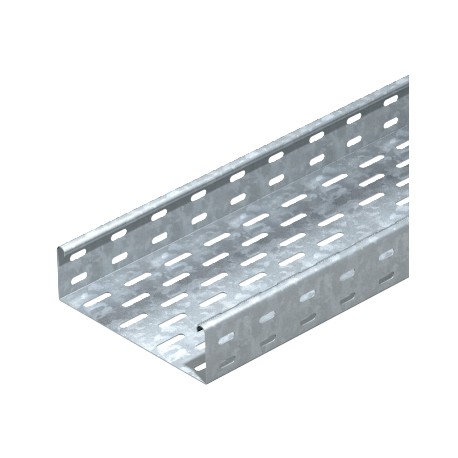

OBO BETTERMANN EKS 610 FS EKS 610 FS 6056148 OBO BETTERMANN Cable tray EKS perforated, 60x100x3000, Strip-galvanised, DIN EN 10147, St.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EKS 610 FS 6056148 OBO BETTERMANN Cable tray EKS perforated, 60x100x3000, Strip-galvanised, DIN EN 10147, St..

EKS 610 FS

6056148

OBO BETTERMANN

3 m.

Cable tray EKS perforated, 60x100x3000, Strip-galvanised, DIN EN 10147, Steel, St Cable tray EKS 60 FS. EKS 60 = extra-heavy cable tray system with 60 mm side height.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built by Obo Bettermann, the EKS 610 FS is a perforated cable tray engineered to facilitate ventilation and secure routing for facility cabling networks. Perforated trays are widely deployed across manufacturing plants and commercial buildings to support distribution pathways. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 8,5763 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Without connectors
  • Dimension: 60x100x3000
  • Dimension: 60 x 100
  • Dimension B: 100 mm
  • Height: 2 in
  • Height: 60 mm
  • Length: 118 ft
  • Length: 3000 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes
  • NATO hole pattern: no
  • Plate thickness: 0,1 in

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate8,5763 kg CO2e / 1 Meter
Colourzinc
Connector versionWithout connectors
Dimension60x100x3000
Dimension60 x 100
Dimension B100 mm
Height2 in
Height60 mm
Length118 ft
Length3000 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness0,1 in
Plate thickness2 mm
Rustproof steel, pickledno
Side perforationyes
Support spacing 1.5 m3,3 kN/m
Support spacing 2.0 m2,2 kN/m
Support spacing 2.5 m1,6 kN/m
Support spacing 3.0 m0,95 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemScrewed
Usable cross-section58 cm²
Usable cross-section5800 mm²
Wide-span versionno
Width100 mm
Width4 in
With coverno
