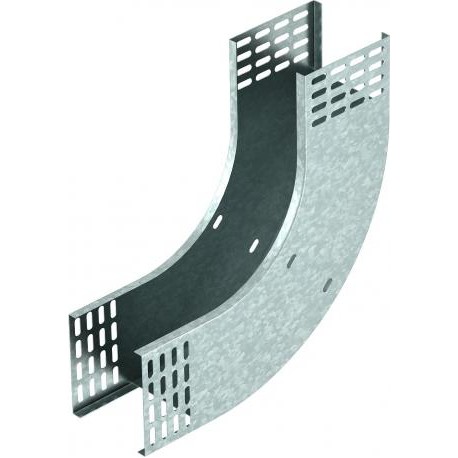

OBO BETTERMANN RBV 155 S FS RBV 155 S FS 7007330 OBO BETTERMANN VERTICAL BEND 90° RBV 155 S FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RBV 155 S FS 7007330 OBO BETTERMANN VERTICAL BEND 90° RBV 155 S FS

RBV 155 S FS

7007330

OBO BETTERMANN

1 Pcs.

VERTICAL BEND 90° RBV 155 S FS Vertical curve 90° RBV 155 S FS, ascending 110x550 Steel, St, strip galvanized, DIN EN 10346 RBV 155 S FS 7007330 90° vertical bend, rising FS

Cables > Bend for cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

RBV 155 S FS 7007330 OBO BETTERMANN VERTICAL BEND 90° RBV 155 S FS functions as a structural raceway component utilized for guiding cable runs vertically upward.

Vertical transition fittings are vital for managing elevation shifts in industrial plant cabling while ensuring standardized support. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: RBVÂ 155Â SÂ FS
  • Side height mm: 110
  • Dimen- sion B mm: 550
  • Pack. pcs: 1
  • Weight kg/100 pcs.: 260,400
  • Item No.: 7007330
  • Change of direction (EF005210): Rising vertically
  • Angle (EF001218): 90°
  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 550 mm
  • Material thickness (EF000386): 1 mm
  • Side perforation (EF001122): No
  • Bottom perforation (EF004545): No
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Coupler not included
  • Suitable for circuit integrity (EF007806): No

More info

▲

The vertical bend is pushed over the end of the cable tray and screwed tight.


TypeRBVÂ 155Â SÂ FS
Side height mm110
Dimen- sion B mm550
Pack. pcs1
Weight kg/100 pcs.260,400
Item No.7007330
