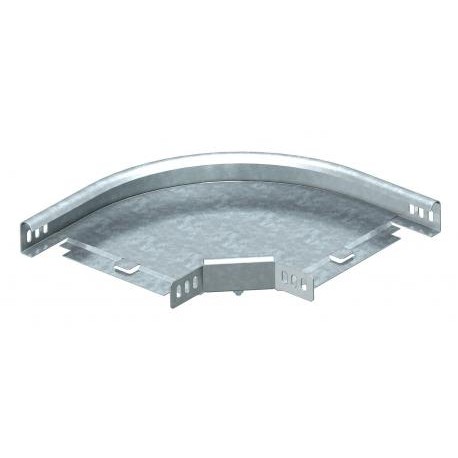

OBO BETTERMANN RB 90 315 FS RB 90 315 FS 6043123 OBO BETTERMANN 90° BEND RB 90 315 FS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RB 90 315 FS 6043123 OBO BETTERMANN 90° BEND RB 90 315 FS

RB 90 315 FS

6043123

OBO BETTERMANN

1 Pcs.

90° BEND RB 90 315 FS 90° bend RB 90 315 FS, horizontal, includes joints 35x150 Steel, St, strip galvanized, DIN EN 10346 RB 90 315 FS 6043123 90° bend FS

Cables > Bend for cable tray
KTS cable support systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The fitting is shipped in an unmounted state.


TypeRBÂ 90Â 315Â FS
Width mm150
Pack. pcs1
Weight kg/100 pcs.65,000
Item No.6043123

ETIM for 6043123 Cable tray, ladder and wire basket systems (EC002400)
Feature Name Feature Value
Change of direction (EF005210) Horizontal
Angle (EF001218) 90°
Construction type (EF000767) Rigid bend
With cover (EF007965) No
Suitable for cable tray height (EF004822) 35 mm
Suitable for cable tray width (EF004820) 150 mm
Side perforation (EF001122) No
Bottom perforation (EF004545) No
NATO-mounting holes (EF006059) No
Model (EF000010) Coupler included
Suitable for circuit integrity (EF007806) No
Material (EF002169) Steel
Stainless steel, pickled (EF006388) No
Surface protection (EF000139) Pre-galvanised
