View larger
Images are for illustrative purposes only. Please refer to data sheet for details

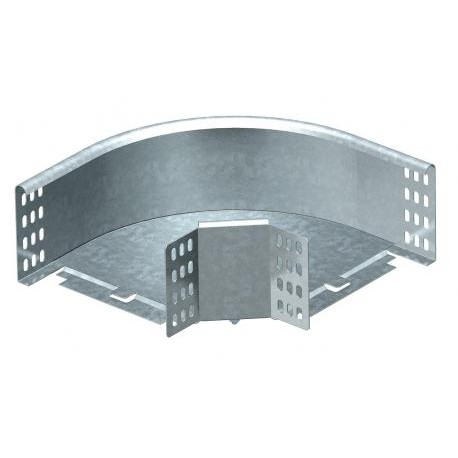

RB 90 130 FS 7001932 OBO BETTERMANN 90° BEND RB 90 130 FS
RB 90 130 FS
7001932
OBO BETTERMANN
1 Pcs.
90° BEND RB 90 130 FS
90° bend RB 90 130 FS, horizontal, incl. joints 110x300 Steel, St, strip galvanized, DIN EN 10346
RB 90 130 FS 7001932 90° bend FS
Cables > Bend for cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲The fitting is shipped in an unmounted state.
| Type | RB 90 130 FS |
| Dimen- sion B mm | 300 |
| Pack. pcs | 1 |
| Weight kg/100 pcs. | 210,000 |
| Item No. | 7001932 |
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Horizontal |
| Angle (EF001218) | 90° |
| With cover (EF007965) | No |
| Suitable for cable tray height (EF004822) | 110 mm |
| Suitable for cable tray width (EF004820) | 300 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
