OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Profile picture
>
1115669
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

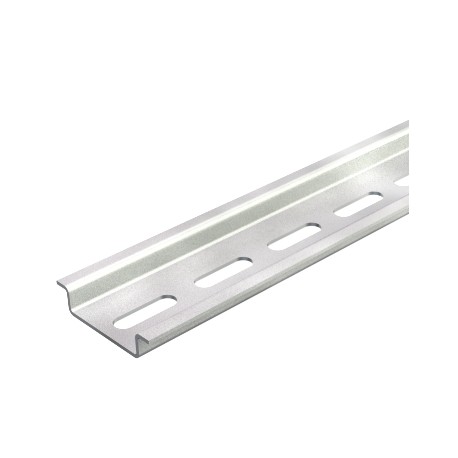

2069 2M GTPL 1115669 OBO BETTERMANN Top hat rail perforated, 2000x35x7,5, Electrogalvanised, transparently p..
2069 2M GTPL
1115669
OBO BETTERMANN
50 m.
Top hat rail perforated, 2000x35x7,5, Electrogalvanised, transparently passivated, Steel, St
Profile 2069 2M GTPL, perforated 2000x35x7.5 Steel, St, Galvanized, transparent passivated
DIN rail, GTPL perforated. DIN rail 35 x 7.5 mm according to DIN EN 60715 (formerly DIN EN 50022).
Automation > Mounting rail
Profile picture
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Hat profile rail 35 x 7.5 mm to DIN en 60715 (formerly DIN en 50022).
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Punch shape (EF001457) | Long-slot |
| Drill hole distance centrically (EF002677) | 25 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 2000 mm |
| Height (EF000040) | 7.5 mm |
