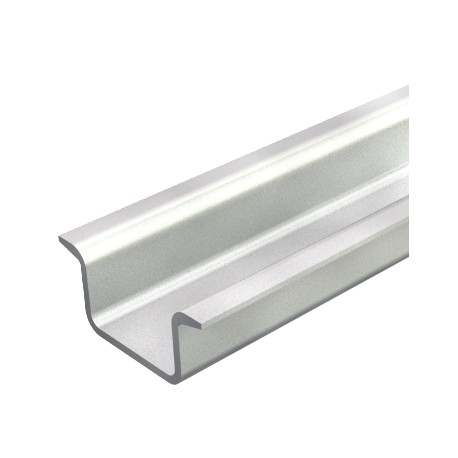

OBO BETTERMANN 2069 15 2.2 GTP 2069 15 2.2 GTP 1115553 OBO BETTERMANN Top hat rail unperforated, 2.25 mm thick, 2000x35x15, Electrogalvanis.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2069 15 2.2 GTP 1115553 OBO BETTERMANN Top hat rail unperforated, 2.25 mm thick, 2000x35x15, Electrogalvanis..

2069 15 2.2 GTP

1115553

OBO BETTERMANN

2 Pcs.

Top hat rail unperforated, 2.25 mm thick, 2000x35x15, Electrogalvanised, transparently passivated, Steel, St GTP hat profile rail, unperforated. Hat profile rail 35 x 15 mm to DIN EN 60715 (formerly DIN EN 50022).

Automation > Mounting rail
Profile picture

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann top hat rail provides a standardized mounting base for installing circuit breakers, relays, and terminal blocks inside control enclosures. These support rails offer structural backbone support for modular industrial automation equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bundle: 20 m
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,6356 kg CO2e / 1 Meter
  • Dimension: 2000x35x15
  • Height: 15 mm
  • Hole shape (ETIM): Without
  • Length: 2000 mm
  • Material: Steel
  • Material thickness: 2,25 mm
  • Surface: Electrogalvanized, transparently passivated
  • Version for: Unperforated
  • Version, rails: Support rail DIN EN 60715
  • Width: 35 mm

More info

▲
Bundle20 m
CO2 Footprint (GWP) Cradle-to-Gate1,6356 kg CO2e / 1 Meter
Dimension2000x35x15
Height15 mm
Hole shape (ETIM)Without
Length2000 mm
MaterialSteel
Material thickness2,25 mm
SurfaceElectrogalvanized, transparently passivated
Version forUnperforated
Version, railsSupport rail DIN EN 60715
Width35 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
