OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Profile picture
>
1115456
View larger
Images are for illustrative purposes only. Please refer to data sheet for details
2069 15 1.5 GTPL 1115456 OBO BETTERMANN Top hat rail perforated, 1.5 mm thick, 2000x35x15, Electrogalvanised..
2069 15 1.5 GTPL
1115456
OBO BETTERMANN
20 m.

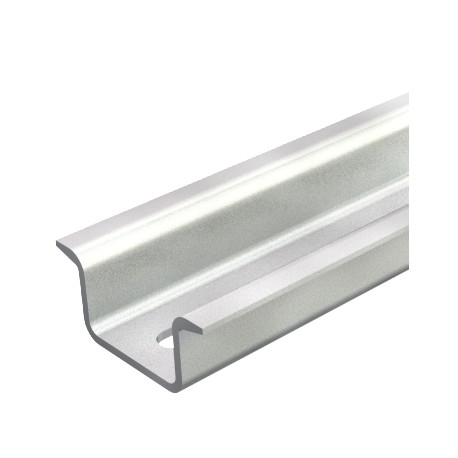

Top hat rail perforated, 1.5 mm thick, 2000x35x15, Electrogalvanised, transparently passivated, Steel, St
Hat profile rail, perforated GTP. Hat profile rail 35 x 15 mm similar to DIN EN 60715 (formerly DIN EN 50022), but with material thickness 1.5 mm.
Automation > Mounting rail
Profile picture
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bundle | 20 m |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 1,1932 kg CO2e / 1 Meter |
| Dimension | 2000x35x15 |
| Drill hole spacing, centre | 25 mm |
| Height | 15 mm |
| Hole shape (ETIM) | Long slot |
| Length | 2000 mm |
| Material | Steel |
|---|---|
| Material thickness | 1,5 mm |
| Surface | Electrogalvanized, transparently passivated |
| Version for | Perforated |
| Version, rails | Support rail DIN EN 60715 |
| Width | 35 mm |
