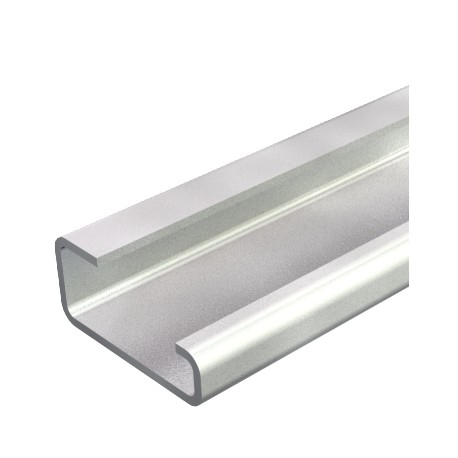

OBO BETTERMANN 2064 GTP 2M 2064 GTP 2M 1115057 OBO BETTERMANN Carrier rail unperforated, 2000x32x15, Electrogalvanised, transparently p.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2064 GTP 2M 1115057 OBO BETTERMANN Carrier rail unperforated, 2000x32x15, Electrogalvanised, transparently p..

2064 GTP 2M

1115057

OBO BETTERMANN

2 Pcs.

Carrier rail unperforated, 2000x32x15, Electrogalvanised, transparently passivated, Steel, St Support rail, unperforated GTP. G rail G32 to DIN EN 60715 (previously DIN EN 50035).

Automation > Mounting rail
Profile picture

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann 2064 GTP 2M Carrier rail unperforated, 2000x32x15, Electrogalvanised, transparently p.. is a sturdy G-profile rail used in heavy industrial installations.

Carrier rails of this type provide specialized mounting geometry for legacy or high-capacity electrical switching and control devices. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bundle: 20 m
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,3258 kg CO2e / 1 Meter
  • Dimension: 2000x32x15
  • Height: 15 mm
  • Hole shape (ETIM): Without
  • Length: 2000 mm
  • Material: Steel
  • Material thickness: 1,5 mm
  • Surface: Electrogalvanized, transparently passivated
  • Version for: Unperforated
  • Version, rails: G rail
  • Width: 32 mm

More info

▲
Bundle20 m
CO2 Footprint (GWP) Cradle-to-Gate1,3258 kg CO2e / 1 Meter
Dimension2000x32x15
Height15 mm
Hole shape (ETIM)Without
Length2000 mm
MaterialSteel
Material thickness1,5 mm
SurfaceElectrogalvanized, transparently passivated
Version forUnperforated
Version, railsG rail
Width32 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
