OBO BETTERMANN MTG-2UC2.1 SWGR1 MTG-2UC2.1 SWGR1 6105302 OBO BETTERMANN USB CHARGER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MTG-2UC2.1 SWGR1 6105302 OBO BETTERMANN USB CHARGER

MTG-2UC2.1 SWGR1

6105302

OBO BETTERMANN

1 Pcs.

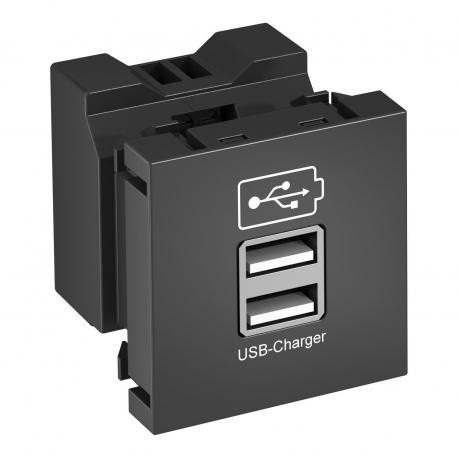

USB CHARGER USB charger with current charge 2.1 A 45x45mm greyish black 7021 Polycarbonate, PC USB charging device. USB charging device with two USB type A sockets, for charging 1‒2 mobile devices, maximum charging current 1x 2,100 mA or 2x 1,050 mA.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.

Automation > USB power supply
EGS device systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,4607 kg CO2e / 1 Piece
ColourBlack-grey; RAL 7021
CombinationBasic element with central cover plate
Depth45 mm
Dimension45x45mm
Fastening typeLock
Halogen-freeyes
Height45 mm
Hinged coverno
Lamp-wire connectorno
MaterialPolycarbonate
Protection ratingIP20
Strain relief optionno
Support ringno
Surface versionMatt
Transparentno
UseUSB
Width45 mm
With dust protectionno
With printed labelno

ETIM for 6105302 Domestic wiring accessories and controls (EC002949)
Feature Name Feature Value
Colour (EF000007) Black
RAL-number (EF000116) 7021
Device width (EF008808) 45 mm
Device height (EF008809) 45 mm
Device depth (EF008810) 45 mm
Suitable for degree of protection (IP) (EF006755) IP20
