View larger
Images are for illustrative purposes only. Please refer to data sheet for details

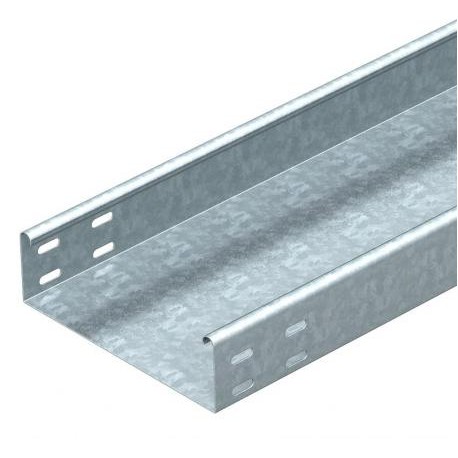

MKSU 615 FS 6063179 OBO BETTERMANN CABLE TRAY MKSU MKSU 615 FS
MKSU 615 FS
6063179
OBO BETTERMANN
3 m.
CABLE TRAY MKSU MKSU 615 FS
Mksu tray, without perfora.,with aguj. bonding, 60x150x3000, galvanized steel in band, DIN EN 10346
Cable tray MKSU 60 FS. MKSU 60 = medium-duty cable tray system, unperforated, with a side height of 60 mm. Straight connectors should be ordered in the appropriate quantity.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,2008 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60 x 150 |
| Dimension | 60x150x3000 |
| Dimension B | 150 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 0,04 in |
| Plate thickness | 1 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 8800 mm² |
| Usable cross-section | 88 cm² |
| Wide-span version | no |
| Width | 6 in |
| Width | 150 mm |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 150 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 8800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2.29 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1500 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 500 |
