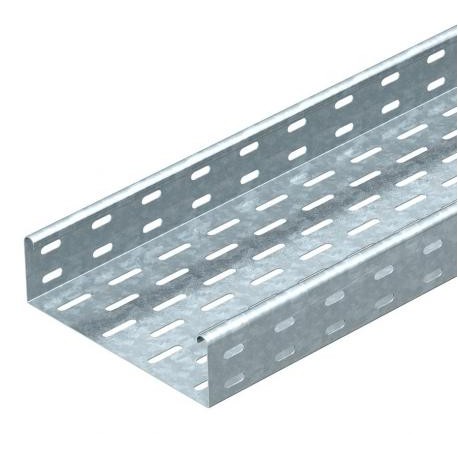

MKS 640 FT 6055664 OBO BETTERMANN CABLE TRAY MKS MKS 640 FT
MKS 640 FT
6055664
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high load capacity, an Obo Bettermann hot-dip galvanized cable tray securely routes heavy power and control cables across harsh industrial environments. Galvanized steel channels provide exceptional corrosion protection and mechanical rigidity for long support spans. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 60 mm
- Width (EF000008): 400 mm
- Material thickness (EF000386): 1 mm
- Length (EF001438): 3000 mm
- Useful cross section (EF005140): 23800 mm²
- With cover (EF007965): No
- Side perforation (EF001122): Yes
- Bottom perforation (EF004545): Yes
- NATO-mounting holes (EF006059): No
- Model (EF000010): Coupler not included
- Type of connector (EF000141): Screwed
- Suitable for circuit integrity (EF007806): No
- Material (EF002169): Steel
- Surface protection (EF000139): Hot dip galvanized
- Weight (EF000167): 4.03 kg/m
- Load test type according to IEC 61537 (EF015362): Type II
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,7683 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x400x3000 |
| Dimension | 60 x 400 |
| Dimension B | 400 mm |
| Dimension W | 400 mm |
| Height | 60 mm |
| Height | 2 in |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 0,04 in |
|---|---|
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 238 cm² |
| Usable cross-section | 23800 mm² |
| Wide-span version | no |
| Width | 16 in |
| Width | 400 mm |
| With cover | no |
