View larger
Images are for illustrative purposes only. Please refer to data sheet for details

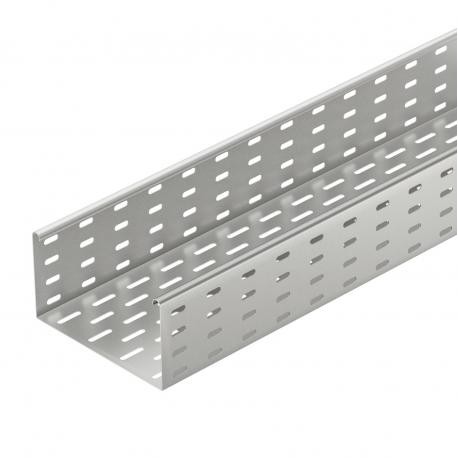

MKS 110 A2 6060803 OBO BETTERMANN CABLE TRAY MKS MKS 110 VA4301
MKS 110 A2
6060803
OBO BETTERMANN
3 m.
CABLE TRAY MKS MKS 110 VA4301
Perforated MKS portable tray 110x100x3000, stainless steel 1.4301, A2, 1.4301
MKS 110 VA4301 6060803 Cable tray MKS 110 FS
Cables > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Including connector, type RLVL 110.
| Type | MKS 110 A2 |
| Width mm | 100 |
| Plate thickness mm | 1 |
| Pack. m | 3 |
| Weight kg/100 m | 243,000 |
| Item No. | 6060803 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 110 mm |
| Width (EF000008) | 100 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 11000 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 2.43 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1850 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1300 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 750 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 600 |
