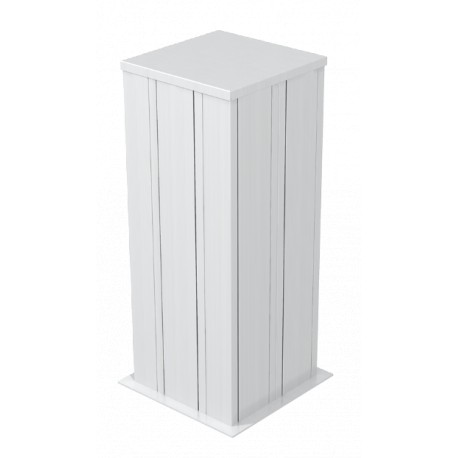

ISSHS6EL 6290073 OBO BETTERMANN Service post centre , 220x250x564, Anodised, Aluminium, Alu
ISSHS6EL
6290073
OBO BETTERMANN
1 Pcs.
Service post centre , 220x250x564, Anodised, Aluminium, Alu
ISSHS6EL distribution column, 564x290x260 Aluminum, Alu, anodized
Electrical installation column, type ISSHS6. ISS Distribution column centre Empty, they can be equipped on all 4 sides with common mechanisms (power sockets, telephone, etc.). 2 sides of the center of the installation can be equipped on two sides, the other two - on one side. Up to 5 mechanisms can be installed on each lid, up to a total of 30. Direct fixing to the ground. Mechanism boxes must be ordered separately. The distribution column can be equipped with the 71GD series gearboxes... A type GA-TW (6279711) partition wall and a type KL80A clamp can be installed as an option.
Automation > Installation column
Columns
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
ISS service pole centre
Empty, can be equipped from all four sides with standard devices (socket, telephone, etc). Two sides of the installation centre can be equipped in two compartments, the other two sides in one. Each installation compartment can accept 5 devices, the entire installation centre accepts max. 30 devices. Direct fastening on floor possible. Accessory mounting boxes to be ordered separately.
The service pole is suitable for accepting front-locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.
Empty, can be equipped from all four sides with standard devices (socket, telephone, etc). Two sides of the installation centre can be equipped in two compartments, the other two sides in one. Each installation compartment can accept 5 devices, the entire installation centre accepts max. 30 devices. Direct fastening on floor possible. Accessory mounting boxes to be ordered separately.
The service pole is suitable for accepting front-locking accessory mounting boxes of the series 71GD.... The installation of a partition of type GA-TW (6279711) and the installation of the cover clip, type KL80A, are possible as an option.
| Feature Name | Feature Value |
|---|---|
| Pillar shape (EF006309) | Rectangular |
| Model (EF000010) | Other |
| Prewired (EF008110) | No |
| Adjustable (EF000996) | No |
| Column depth (EF012218) | 260 mm |
| Column width (EF012461) | 290 mm |
| Number of usable covers (EF002923) | 6 |
| Cover width (EF005146) | 76.5 mm |
| Type of fastening (EF002442) | Screwing |
| Place variable (EF006286) | No |
| Suitable for ceiling mounting (EF021180) | No |
| Suitable for floor mounting (EF025108) | Yes |
| Cable entry (EF000537) | Below |
| Through-going profile (EF005690) | Yes |
| Material installation column (EF005413) | Aluminium |
| Material installation column halogen free (EF008131) | Yes |
| Surface protection column (EF006400) | Anodised |
| Material cover (EF005420) | Aluminium |
| Material cover halogen free (EF008132) | Yes |
| Cover surface (EF008007) | Anodised |
