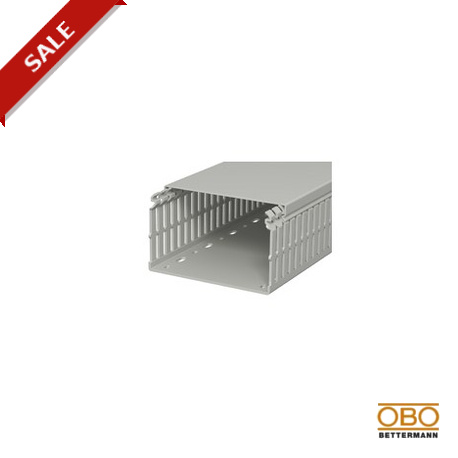

LKV N 75125 6178430 OBO BETTERMANN Slotted cable trunking system , 75x125x2000, Stone grey, 7030, Polyvinylc..
LKV N 75125
6178430
OBO BETTERMANN
8 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An LKV N 75125 6178430 OBO BETTERMANN Slotted cable trunking system provides structured pathways for routing and securing electrical wires throughout industrial control panels. Enclosure designers deploy these systems to neatly separate various circuit paths and protect cables from physical wear in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,8578 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 75x125x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 75 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 83,57 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,8578 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 75x125x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 75 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 83,57 cm² |
| Width | 125 mm |
| With cover | yes |
