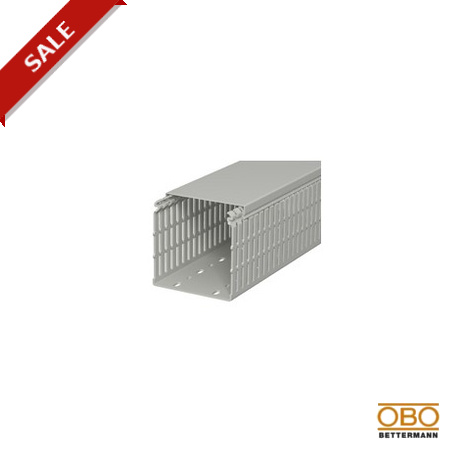

LKV N 100100 6178441 OBO BETTERMANN Slotted cable trunking system , 100x100x2000, Stone grey, 7030, Polyviny..
LKV N 100100
6178441
OBO BETTERMANN
8 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann LKV N 100100 is a slotted cable trunking system applied in heavy-duty switchgear and machinery to route large wire bundles safely. Trunking channels help keep electrical panels organized, protecting conductors from damage and simplifying maintenance tasks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,784 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 100x100x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 100 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 89,36 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,784 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 100x100x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 100 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 89,36 cm² |
| Width | 100 mm |
| With cover | yes |
