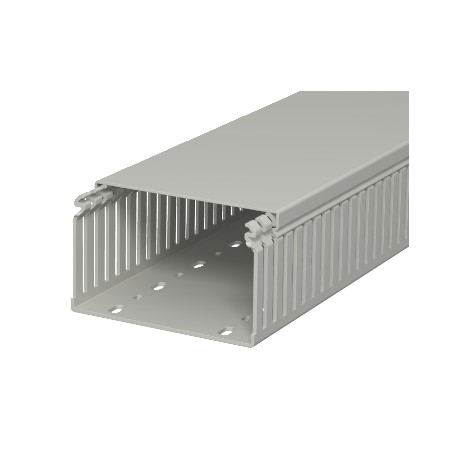

LKV 75125 6178330 OBO BETTERMANN Slotted cable trunking system , 75x125x2000, Stone grey, 7030, Polyvinylchl..
LKV 75125
6178330
OBO BETTERMANN
8 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This LKV 75125 6178330 OBO BETTERMANN Slotted cable trunking system offers substantial internal volume for organizing and routing heavy wire bundles in control cabinets. Industrial technicians depend on such slotted trunking to maintain orderly cable organization and quick access during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,8622 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 75x125x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 75 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 83,57 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,8622 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 75x125x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 75 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 83,57 cm² |
| Width | 125 mm |
| With cover | yes |
