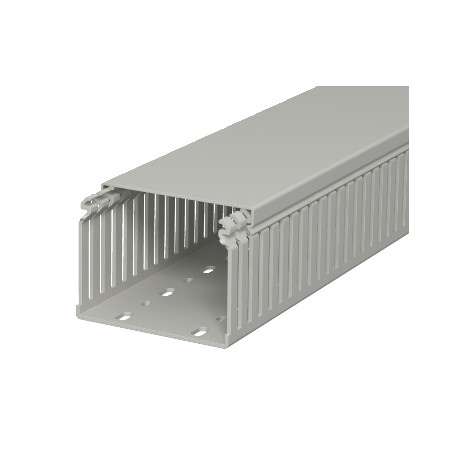

LKV 75100 6178328 OBO BETTERMANN Slotted cable trunking system , 75x100x2000, Stone grey, 7030, Polyvinylchl..
LKV 75100
6178328
OBO BETTERMANN
16 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Structuring internal electrical pathways is straightforward with this LKV 75100 6178328 OBO BETTERMANN Slotted cable trunking system, built for heavy-duty industrial enclosures. Slotted trunking helps streamline wire management by providing dependable side entry points for branch circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,4058 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 75x100x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 75 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 65,34 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,4058 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 75x100x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 75 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 65,34 cm² |
| Width | 100 mm |
| With cover | yes |
