View larger
Images are for illustrative purposes only. Please refer to data sheet for details

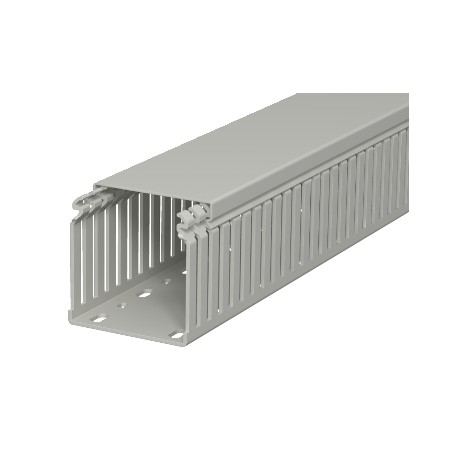

LKV 75075 6178326 OBO BETTERMANN Slotted cable trunking system , 75x75x2000, Stone grey, 7030, Polyvinylchlo..
LKV 75075
6178326
OBO BETTERMANN
16 m.
Slotted cable trunking system , 75x75x2000, Stone grey, 7030, Polyvinylchloride, PVC
Wiring trunking, type LKV 75075. Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,9846 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 75x75x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 75 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 47,95 cm² |
| Width | 75 mm |
| With cover | yes |
