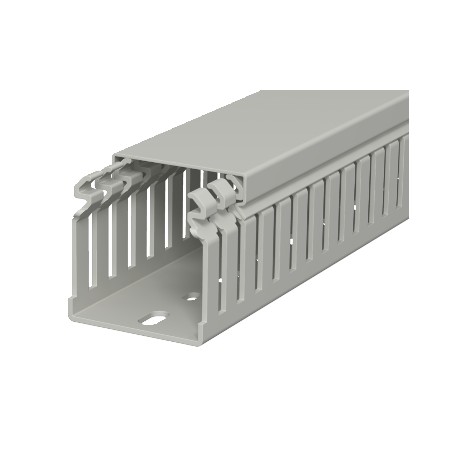

OBO BETTERMANN LKV 50050 LKV 50050 6178314 OBO BETTERMANN Slotted cable trunking system , 50x50x2000, Stone grey, 7030, Polyvinylchlo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LKV 50050 6178314 OBO BETTERMANN Slotted cable trunking system , 50x50x2000, Stone grey, 7030, Polyvinylchlo..

LKV 50050

6178314

OBO BETTERMANN

36 Pcs.

Slotted cable trunking system , 50x50x2000, Stone grey, 7030, Polyvinylchloride, PVC Wiring trunking, type LKV 50050. Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a dedicated channel for industrial installations, this LKV 50050 6178314 OBO BETTERMANN Slotted cable trunking system organizes and shields internal cabinet wiring. Panel builders utilize slotted trunking to route control lines efficiently and maintain organized layouts across automation equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,1613 kg CO2e / 1 Meter
  • Colour: Stone grey
  • RAL: 7030
  • Dimension: 50x50x2000
  • Fastening type: Base perforation
  • Flexible: no
  • Halogen-free: no
  • Height: 50 mm
  • Length: 2000 mm
  • Material: Polyvinylchloride
  • Permitted temperature range, max.: 60 °C
  • Permitted temperature range, min.: -5 °C
  • Self-extinguishing: yes
  • Side wall version: Slotted
  • Slot spacing: 12,5 mm
  • Slot width: 5 mm
  • Usable cross-section: 20,05 cm²

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,1613 kg CO2e / 1 Meter
ColourStone grey; RAL 7030
Dimension50x50x2000
Fastening typeBase perforation
Flexibleno
Halogen-freeno
Height50 mm
Length2000 mm
MaterialPolyvinylchloride
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Self-extinguishingyes
Side wall versionSlotted
Slot spacing12,5 mm
Slot width5 mm
Usable cross-section20,05 cm²
Width50 mm
With coveryes
