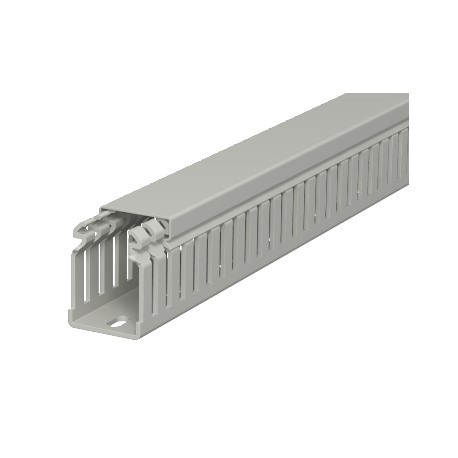

LKV 50037 6178312 OBO BETTERMANN Slotted cable trunking system , 50x37,5x2000, Stone grey, 7030, Polyvinylch..
LKV 50037
6178312
OBO BETTERMANN
48 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann LKV 50037 is a slotted cable trunking system engineered to organize and protect electrical cables inside industrial housings. Routing wires through slotted trunking keeps panel layouts clean, protects lines from strain, and facilitates future circuit modifications.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,051 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 50x37,5x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 50 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 14,24 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,051 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 50x37,5x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 50 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 14,24 cm² |
| Width | 37,5 mm |
| With cover | yes |
