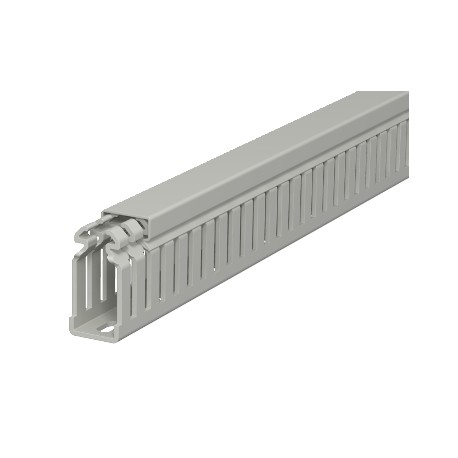

LKV 50025 6178310 OBO BETTERMANN Slotted cable trunking system , 50x25x2000, Stone grey, 7030, Polyvinylchlo..
LKV 50025
6178310
OBO BETTERMANN
60 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann slotted cable trunking system manages wiring pathways within distribution boards and industrial automation panels, keeping conductors secure and separated. These profiles form reliable backbones for complex control systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,925 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Dimension: 50x25x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 50 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
- Usable cross-section: 8,39 cm²
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,925 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Dimension | 50x25x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 50 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 8,39 cm² |
| Width | 25 mm |
| With cover | yes |
