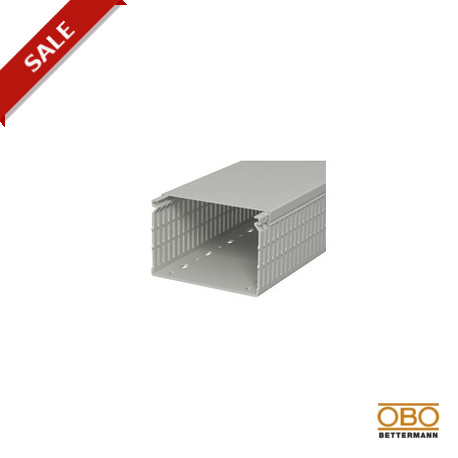

LK4 N 80120 6178236 OBO BETTERMANN Slotted cable trunking system , 80x120x2000, Stone grey, 7030, Polyvinylc..
LK4 N 80120
6178236
OBO BETTERMANN
8 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A slotted cable trunking system organizes and shields electrical conductors within automation control panels and distribution cabinets. This Obo Bettermann part (LK4 N 80120) offers a structured pathway for heavy cable bundles, ensuring clear organization and straightforward maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 3,1539 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 80x120x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 80 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,1539 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 80x120x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 80 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Usable cross-section | 93,62 cm² |
| Width | 120 mm |
| With cover | yes |
