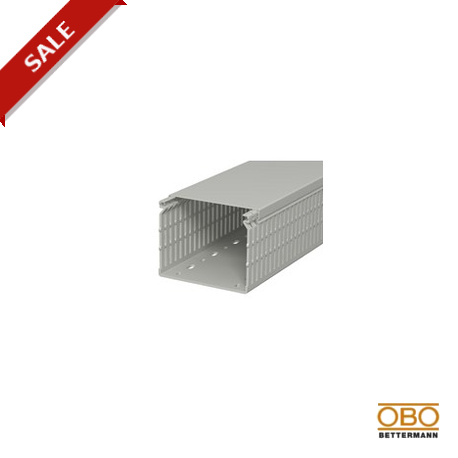

OBO BETTERMANN LK4 N 80100 LK4 N 80100 6178233 OBO BETTERMANN Slotted cable trunking system , 80x100x2000, Stone grey, 7030, Polyvinylc.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 N 80100 6178233 OBO BETTERMANN Slotted cable trunking system , 80x100x2000, Stone grey, 7030, Polyvinylc..

LK4 N 80100

6178233

OBO BETTERMANN

16 m.

Slotted cable trunking system , 80x100x2000, Stone grey, 7030, Polyvinylchloride, PVC Wiring trunking, type LK4 N 80100. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann slotted cable trunking system organizes high-density wiring configurations within industrial enclosures, protecting internal conductors from physical wear. Such systems streamline panel maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 2,5881 kg CO2e / 1 Meter
  • Colour: Stone grey
  • RAL: 7030
  • Creepage current-resistant: yes
  • Dimension: 80x100x2000
  • Fastening type: Base perforation
  • Flexible: no
  • Halogen-free: no
  • Height: 80 mm
  • Length: 2000 mm
  • Material: Polyvinylchloride
  • Permitted temperature range, max.: 60 °C
  • Permitted temperature range, min.: -5 °C
  • Self-extinguishing: yes
  • Side wall version: Slotted
  • Slot spacing: 12,5 mm
  • Slot width: 5 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,5881 kg CO2e / 1 Meter
ColourStone grey; RAL 7030
Creepage current-resistantyes
Dimension80x100x2000
Fastening typeBase perforation
Flexibleno
Halogen-freeno
Height80 mm
Length2000 mm
MaterialPolyvinylchloride
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Self-extinguishingyes
Side wall versionSlotted
Slot spacing12,5 mm
Slot width5 mm
Usable cross-section78,03 cm²
Width100 mm
With coveryes
