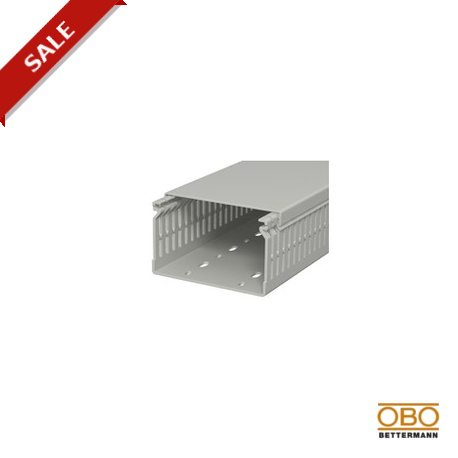

LK4 N 60100 6178211 OBO BETTERMANN Slotted cable trunking system , 60x100x2000, Stone grey, 7030, Polyvinylc..
LK4 N 60100
6178211
OBO BETTERMANN
16 Pcs.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann LK4 N 60100 is a slotted cable trunking system applied in industrial enclosures to organize and route electrical wires securely. Trunking systems provide clean pathways for conductors, ensuring panels remain neat and easy to service.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,4454 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 60x100x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 60 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 12,5 mm
- Slot width: 5 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,4454 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 60x100x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
|---|---|
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Width | 100 mm |
| With cover | yes |
