View larger
Images are for illustrative purposes only. Please refer to data sheet for details

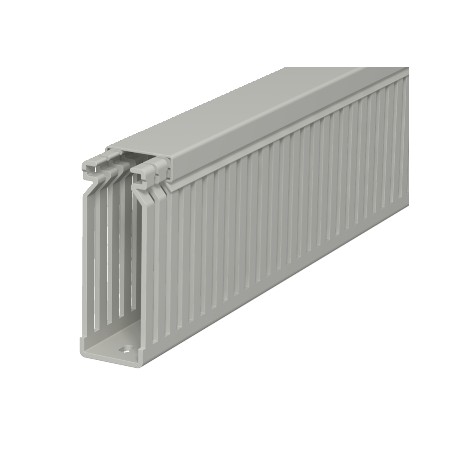

LK4 80025 6178050 OBO BETTERMANN Slotted cable trunking system , 80x25x2000, Stone grey, 7030, Polyvinylchlo..
LK4 80025
6178050
OBO BETTERMANN
32 m.
Slotted cable trunking system , 80x25x2000, Stone grey, 7030, Polyvinylchloride, PVC
Wiring trunking, type LK4 80025. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,588 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 80x25x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 80 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 18,67 cm² |
| Width | 25 mm |
| With cover | yes |
