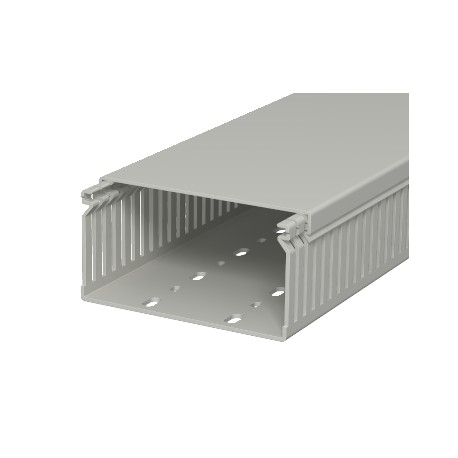

OBO BETTERMANN LK4 60120 LK4 60120 6178039 OBO BETTERMANN Slotted cable trunking system , 60x120x2000, Stone grey, 7030, Polyvinylchl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 60120 6178039 OBO BETTERMANN Slotted cable trunking system , 60x120x2000, Stone grey, 7030, Polyvinylchl..

LK4 60120

6178039

OBO BETTERMANN

8 m.

Slotted cable trunking system , 60x120x2000, Stone grey, 7030, Polyvinylchloride, PVC LK4 60120 frame channel, 60x120x2000 Polyvinyl chloride, PVC, Wiring trunking, type LK4 60120. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann LK4 60120 6178039 slotted cable trunking system offers robust mechanical protection and orderly routing for electrical wiring in industrial automation setups. Wire ducting systems ensure cables are neatly separated and shielded from environmental hazards inside control boards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Polyvinyl chloride (PVC)
  • Height (EF000040): 60 mm
  • Width (EF000008): 120 mm
  • Length (EF001438): 2000 mm
  • Diameter (EF000551): 0 mm
  • Distance of slots (EF005246): 10 mm
  • Slit width (EF005247): 4 mm
  • Type of side wall (EF000098): Slotted
  • Halogen free (EF000025): No
  • Self-extinguishing (EF000681): Yes
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 6969 mm²
  • Type of fastening (EF002442): Bottom perforation
  • With cover (EF007965): Yes
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7030

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate2,7547 kg CO2e / 1 Meter
ColourStone grey; RAL 7030
Creepage current-resistantyes
Dimension60x120x2000
Fastening typeBase perforation
Flexibleno
Halogen-freeno
Height60 mm
Length2000 mm
MaterialPolyvinylchloride
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Self-extinguishingyes
Side wall versionSlotted
Slot spacing10 mm
Slot width4 mm
Usable cross-section69,69 cm²
Width120 mm
With coveryes
