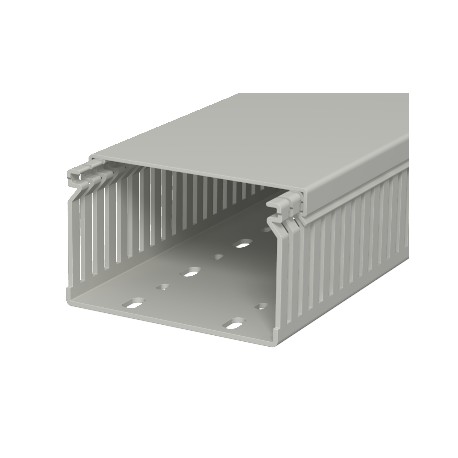

LK4 60100 6178037 OBO BETTERMANN Slotted cable trunking system , 60x100x2000, Stone grey, 7030, Polyvinylchl..
LK4 60100
6178037
OBO BETTERMANN
16 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Offering generous depth for complex wiring layouts, this LK4 60100 6178037 OBO BETTERMANN Slotted cable trunking system manages internal electrical distribution routes. Switchgear engineers rely on slotted trunking tracks to maintain neat organization and protect conductors from accidental pinching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 2,4459 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 60x100x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 60 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 10 mm
- Slot width: 4 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,4459 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 60x100x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 58 cm² |
| Width | 100 mm |
| With cover | yes |
