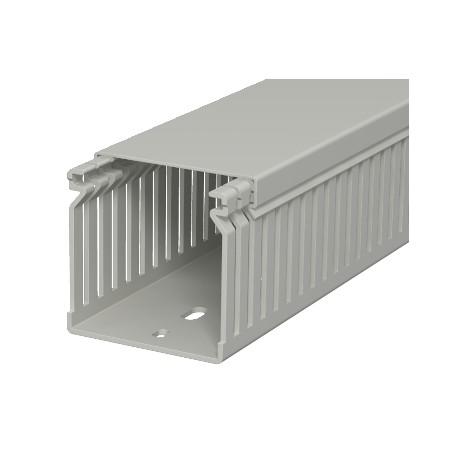

LK4 60060 6178033 OBO BETTERMANN Slotted cable trunking system , 60x60x2000, Stone grey, 7030, Polyvinylchlo..
LK4 60060
6178033
OBO BETTERMANN
32 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A slotted cable trunking system is deployed in electrical cabinets to organize, guide, and protect internal conductors from damage. The Obo Bettermann LK4 60060 provides reliable mechanical routing while allowing straightforward cable access across industrial assemblies.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,5474 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 60x60x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 60 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 10 mm
- Slot width: 4 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,5474 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 60x60x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 34,03 cm² |
| Width | 60 mm |
| With cover | yes |
