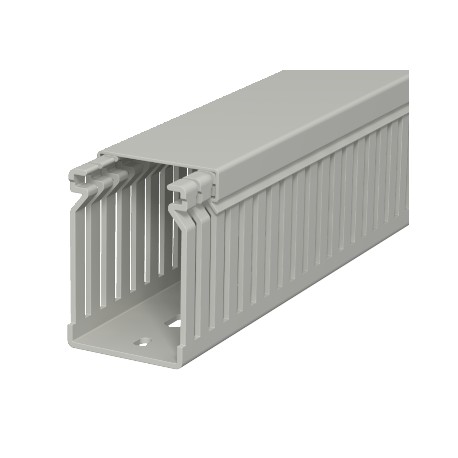

OBO BETTERMANN LK4 60040 LK4 60040 6178031 OBO BETTERMANN Slotted cable trunking system , 60x40x2000, Stone grey, 7030, Polyvinylchlo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 60040 6178031 OBO BETTERMANN Slotted cable trunking system , 60x40x2000, Stone grey, 7030, Polyvinylchlo..

LK4 60040

6178031

OBO BETTERMANN

24 m.

Slotted cable trunking system , 60x40x2000, Stone grey, 7030, Polyvinylchloride, PVC Wiring trunking, type LK4 60040. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann LK4 60040 is a slotted cable trunking system designed for managing internal electrical conductors in control panels. Cable trunking maintains orderly wire routing, prevents tangling, and protects connections from physical damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 1,3809 kg CO2e / 1 Meter
  • Colour: Stone grey
  • RAL: 7030
  • Creepage current-resistant: yes
  • Dimension: 60x40x2000
  • Fastening type: Base perforation
  • Flexible: no
  • Halogen-free: no
  • Height: 60 mm
  • Length: 2000 mm
  • Material: Polyvinylchloride
  • Permitted temperature range, max.: 60 °C
  • Permitted temperature range, min.: -5 °C
  • Self-extinguishing: yes
  • Side wall version: Slotted
  • Slot spacing: 10 mm
  • Slot width: 4 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,3809 kg CO2e / 1 Meter
ColourStone grey; RAL 7030
Creepage current-resistantyes
Dimension60x40x2000
Fastening typeBase perforation
Flexibleno
Halogen-freeno
Height60 mm
Length2000 mm
MaterialPolyvinylchloride
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Self-extinguishingyes
Side wall versionSlotted
Slot spacing10 mm
Slot width4 mm
Usable cross-section22,38 cm²
Width40 mm
With coveryes
