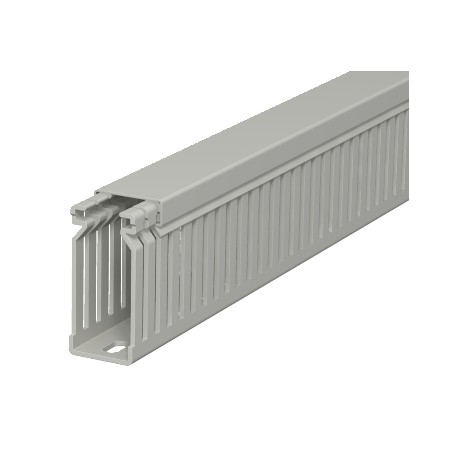

LK4 60025 6178028 OBO BETTERMANN Slotted cable trunking system , 60x25x2000, Stone grey, 7030, Polyvinylchlo..
LK4 60025
6178028
OBO BETTERMANN
32 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A slotted cable trunking system organizes and protects internal panel wiring while allowing convenient branch-off routing through side wall slots. Installers use these PVC channels extensively in electrical cabinets to maintain neat, safe conductor management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,2247 kg CO2e / 1 Meter
- Colour: Stone grey; RAL 7030
- Creepage current-resistant: yes
- Dimension: 60x25x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 60 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 10 mm
- Slot width: 4 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,2247 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 60x25x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 13,56 cm² |
| Width | 25 mm |
| With cover | yes |
