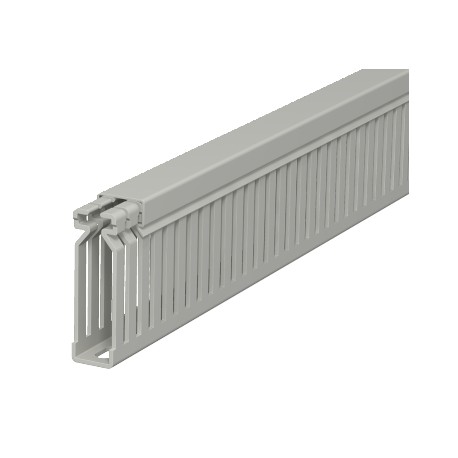

LK4 60015 6178026 OBO BETTERMANN Slotted cable trunking system , 60x15x2000, Stone grey, 7030, Polyvinylchlo..
LK4 60015
6178026
OBO BETTERMANN
48 m.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A slotted cable trunking system provides structural pathways for internal cabinet wiring, keeping conductors secure and neatly segregated. This Obo Bettermann component (part number LK4 60015) is designed for tight spaces where efficient wire routing and mechanical protection are required.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,8513 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 60x15x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 60 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 10 mm
- Slot width: 4 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,8513 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 60x15x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 60 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 8,09 cm² |
| Width | 15 mm |
| With cover | yes |
