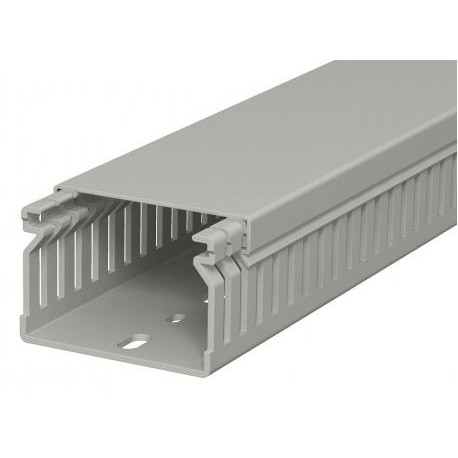

LK4 40060 6178014 OBO BETTERMANN Slotted cable trunking system , 40x60x2000, Stone grey, 7030, Polyvinylchlo..
LK4 40060
6178014
OBO BETTERMANN
24 m.
Slotted cable trunking system , 40x60x2000, Stone grey, 7030, Polyvinylchloride, PVC
Wiring trunking, type LK4 40060. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
Cables > Slotted cable trunking system
Channel box
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann slotted cable trunking systems provide structured pathways for low-voltage distribution wiring, protecting circuit paths inside heavy-duty enclosures. These channels optimize internal panel layouts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 1,3577 kg CO2e / 1 Meter
- Colour: Stone grey
- RAL: 7030
- Creepage current-resistant: yes
- Dimension: 40x60x2000
- Fastening type: Base perforation
- Flexible: no
- Halogen-free: no
- Height: 40 mm
- Length: 2000 mm
- Material: Polyvinylchloride
- Permitted temperature range, max.: 60 °C
- Permitted temperature range, min.: -5 °C
- Self-extinguishing: yes
- Side wall version: Slotted
- Slot spacing: 10 mm
- Slot width: 4 mm
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,3577 kg CO2e / 1 Meter |
|---|---|
| Colour | Stone grey; RAL 7030 |
| Creepage current-resistant | yes |
| Dimension | 40x60x2000 |
| Fastening type | Base perforation |
| Flexible | no |
| Halogen-free | no |
| Height | 40 mm |
| Length | 2000 mm |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
|---|---|
| Permitted temperature range, min. | -5 °C |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Slot spacing | 10 mm |
| Slot width | 4 mm |
| Usable cross-section | 22,34 cm² |
| Width | 60 mm |
| With cover | yes |
