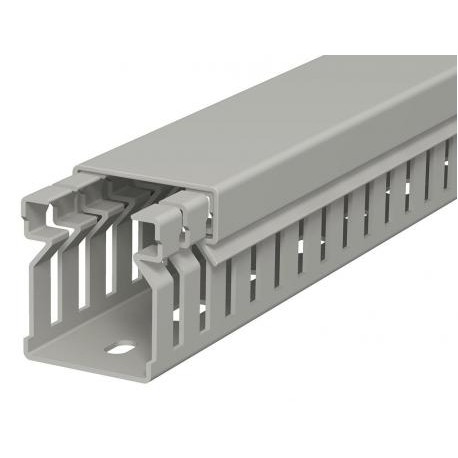

OBO BETTERMANN LK4 30025 LK4 30025 6178005 OBO BETTERMANN Slotted cable trunking system , 30x25x2000, Stone grey, 7030, Polyvinylchlo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 30025 6178005 OBO BETTERMANN Slotted cable trunking system , 30x25x2000, Stone grey, 7030, Polyvinylchlo..

LK4 30025

6178005

OBO BETTERMANN

48 m.

Slotted cable trunking system , 30x25x2000, Stone grey, 7030, Polyvinylchloride, PVC LK4 30025 frame channel, 30x25x2000 Polyvinyl chloride, PVC, Grooved channel, type LK4 30025. Wiring channel incl. top and hole in the base for horizontal and vertical laying of electrical cables and lines in the electrical panel. Version as metric channel. The nominal dimension of the system size corresponds to the inside dimension of the channels. Bridges can be broken without the need for tools. Predefined breakpoints allow installation flush with the ground. Tested according to DIN EN 50085-2-3. Special lengths available upon request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann LK4 30025 6178005 Obo Bettermann slotted cable trunking system , 30x25x2000, Stone grey, 7030, Polyvinylchlo.. is deployed in switchboards and control cabinets to organize, guide, and protect internal electrical wiring. Cable routing ducts prevent loose conductors from interfering with moving parts and streamline troubleshooting tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Polyvinyl chloride (PVC)
  • Height (EF000040): 30 mm
  • Width (EF000008): 25 mm
  • Length (EF001438): 2000 mm
  • Diameter (EF000551): 0 mm
  • Distance of slots (EF005246): 10 mm
  • Slit width (EF005247): 4 mm
  • Type of side wall (EF000098): Slotted
  • Halogen free (EF000025): No
  • Self-extinguishing (EF000681): Yes
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 682 mm²
  • Type of fastening (EF002442): Bottom perforation
  • With cover (EF007965): Yes
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7030

More info

▲
Wiring trunking including cover and base perforation. The nominal dimension of the system size corresponds to the internal dimension of the trunking.
