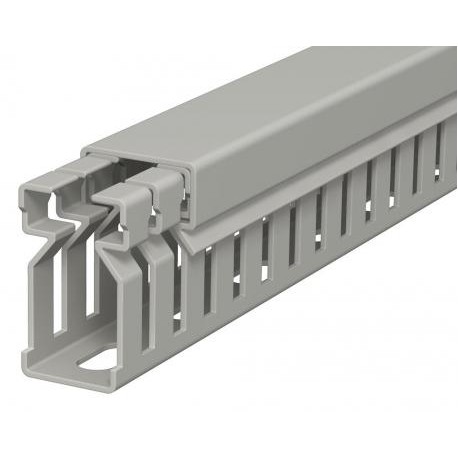

OBO BETTERMANN LK4 30015 LK4 30015 6178003 OBO BETTERMANN Slotted cable trunking system , 30x15x2000, Stone grey, 7030, Polyvinylchlo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 30015 6178003 OBO BETTERMANN Slotted cable trunking system , 30x15x2000, Stone grey, 7030, Polyvinylchlo..

LK4 30015

6178003

OBO BETTERMANN

40 m.

Slotted cable trunking system , 30x15x2000, Stone grey, 7030, Polyvinylchloride, PVC LK4 30015 frame channel, 30x15x2000 Polyvinyl chloride, PVC, Grooved channel, type LK4 30015. Wiring channel incl. top and hole in the base for horizontal and vertical laying of electrical cables and lines in the electrical panel. Version as metric channel. The nominal dimension of the system size corresponds to the inside dimension of the channels. Bridges can be broken without the need for tools. Predefined breakpoints allow installation flush with the ground. Tested according to DIN EN 50085-2-3. Special lengths available upon request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann slotted cable trunking system model LK4 30015 serves as an industrial raceway component deployed to organize and safeguard electrical wiring inside control panels. Cable duct systems provide structured cable organization that enhances safety and simplifies maintenance procedures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Polyvinyl chloride (PVC)
  • Height (EF000040): 30 mm
  • Width (EF000008): 15 mm
  • Length (EF001438): 2000 mm
  • Diameter (EF000551): 0 mm
  • Distance of slots (EF005246): 10 mm
  • Slit width (EF005247): 4 mm
  • Type of side wall (EF000098): Slotted
  • Halogen free (EF000025): No
  • Self-extinguishing (EF000681): Yes
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 406 mm²
  • Type of fastening (EF002442): Bottom perforation
  • With cover (EF007965): Yes
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7030

More info

▲
Wiring trunking including cover and base perforation. The nominal dimension of the system size corresponds to the internal dimension of the trunking.
