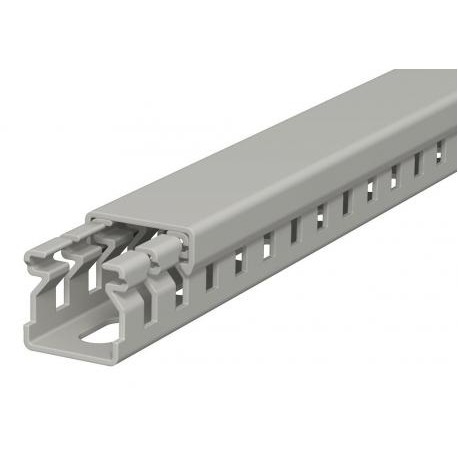

OBO BETTERMANN LK4 15015 LK4 15015 6178001 OBO BETTERMANN Slotted cable trunking system , 15x15x2000, Stone grey, 7030, Polyvinylchlo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

LK4 15015 6178001 OBO BETTERMANN Slotted cable trunking system , 15x15x2000, Stone grey, 7030, Polyvinylchlo..

LK4 15015

6178001

OBO BETTERMANN

72 m.

Slotted cable trunking system , 15x15x2000, Stone grey, 7030, Polyvinylchloride, PVC LK4 15015 frame channel, 15x15x2000 Polyvinyl chloride, PVC, Wiring trunking, type LK4 15015. Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Cables > Slotted cable trunking system
Channel box

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A slotted cable trunking system is widely installed in control panels to guide, bundle, and isolate internal electrical wiring safely. The Obo Bettermann LK4 15015 provides a compact stone grey profile suited for tight spaces within switchboard assemblies. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material (EF002169): Polyvinyl chloride (PVC)
  • Height (EF000040): 15 mm
  • Width (EF000008): 15 mm
  • Length (EF001438): 2000 mm
  • Diameter (EF000551): 0 mm
  • Distance of slots (EF005246): 10 mm
  • Slit width (EF005247): 4 mm
  • Halogen free (EF000025): No
  • Self-extinguishing (EF000681): Yes
  • Flexible (EF000083): No
  • Useful cross section (EF005140): 190 mm²
  • Type of fastening (EF002442): Bottom perforation
  • With cover (EF007965): Yes
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7030

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2716 kg CO2e / 1 Meter
ColourStone grey; RAL 7030
Creepage current-resistantyes
Dimension15x15x2000
Fastening typeBase perforation
Flexibleno
Halogen-freeno
Height15 mm
Length2000 mm
MaterialPolyvinylchloride
Permitted temperature range, max.60 °C
Permitted temperature range, min.-5 °C
Self-extinguishingyes
Side wall versionProfile (open)
Slot spacing10 mm
Slot width4 mm
Usable cross-section1,9 cm²
Width15 mm
With coveryes
