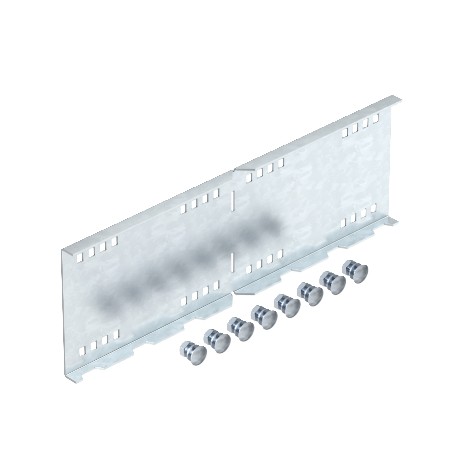

WRWVK 160 FS 6227832 OBO BETTERMANN Angular connector for wide span system 160, 160x500, Strip-galvanised, D..
WRWVK 160 FS
6227832
OBO BETTERMANN
2 Pcs.
Angular connector for wide span system 160, 160x500, Strip-galvanised, DIN EN 10147, Steel, St
Straight and angle connector FS. Angle connector for wide span cable trays and ladders with a side height of 160 mm.
Cables > Connector for cable support system
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An angular connector for wide span system 160, part number WRWVK 160 FS from Obo Bettermann, is utilized to create directional changes and secure structural angles in heavy-duty routing systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable connector, horizontal: no
- Articulated connector, vertical: no
- CO2 Footprint (GWP) Cradle-to-Gate: 5,4958 kg CO2e / 1 Piece
- Colour: zinc
- Connection type: Screw connector
- Dimension: 160x500
- Height: 160 mm
- Length: 500 mm
- Maintain electrical functions: no
- Material: Steel
- Plate thickness: 2,5 mm
- Rustproof steel, pickled: no
- Suitable for cable ladder: yes
- Suitable for cable tray: yes
- Suitable for cable tray system height: 160 mm
- Suitable for mesh cable tray: no
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,4958 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 160x500 |
| Height | 160 mm |
| Length | 500 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Plate thickness | 2,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 160 mm |
| Suitable for mesh cable tray | no |
| Surface | Strip galvanized |
| Version for | Angle connector |
| Width | 20 mm |
