View larger
Images are for illustrative purposes only. Please refer to data sheet for details

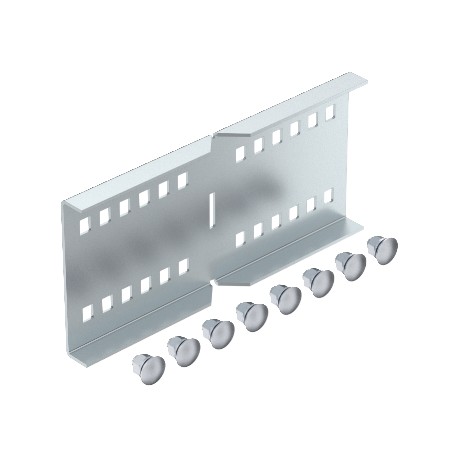

WRWVK 110 A2 6091393 OBO BETTERMANN Angular connector for wide span system 110, 110x250, Stainless steel, gr..
WRWVK 110 A2
6091393
OBO BETTERMANN
2 Pcs.
Angular connector for wide span system 110, 110x250, Stainless steel, grade 304, VA, 1.4301
WRWVK 110 A2 Angle Joint, for Wide Span System 110 110x250 Stainless Steel 1.4301, A2, 1.4301, Polished, Post-Treated
Straight and angle connector A2. Angle connector for wide span cable trays and ladders with a side height of 110 mm.
Cables > Connector for cable support system
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,7619 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Connection type | Screw connector |
| Dimension | 110x250 |
| Height | 110 mm |
| Length | 250 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Plate thickness | 2,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 110 mm |
| Suitable for mesh cable tray | no |
| Surface | Bright, treated |
| Version for | Angle connector |
| Width | 20 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Corner joint |
| Hinged joint horizontal (EF006392) | No |
| Hinged joint vertical (EF006393) | No |
| Type of connection (EF000064) | Screw connector |
| Suitable for wire mesh tray (EF005163) | No |
| Suitable for cable ladder (EF005165) | Yes |
| Suitable for cable tray (EF005166) | Yes |
| Suitable for cable support system height (EF015698) | 110 mm |
| Length (EF001438) | 250 mm |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Stainless steel, pickled (EF006388) | No |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
