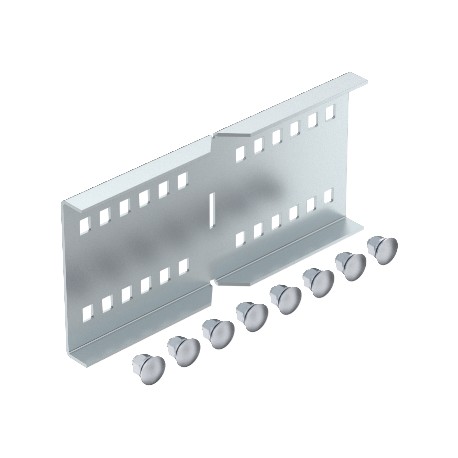

OBO BETTERMANN WRWVK 110 FS WRWVK 110 FS 6091377 OBO BETTERMANN Angular connector for wide span system 110, 110x250, Strip-galvanised, D.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRWVK 110 FS 6091377 OBO BETTERMANN Angular connector for wide span system 110, 110x250, Strip-galvanised, D..

WRWVK 110 FS

6091377

OBO BETTERMANN

2 Pcs.

Angular connector for wide span system 110, 110x250, Strip-galvanised, DIN EN 10147, Steel, St Straight and angle connector FS. Angle connector for wide span cable trays and ladders with a side height of 110 mm.

Cables > Connector for cable support system
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configuring directional angles in extensive routing layouts requires robust hardware like the Obo Bettermann Angular connector for wide span system 110, part number WRWVK 110 FS. Angular connectors safely link structural wire management channels while accommodating layout turns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,2871 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 110x250
  • Height: 110 mm
  • Length: 250 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 2,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Suitable for cable tray system height: 110 mm
  • Suitable for mesh cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate2,2871 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension110x250
Height110 mm
Length250 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness2,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for cable tray system height110 mm
Suitable for mesh cable trayno
SurfaceStrip galvanized
Version forAngle connector
Width20 mm
