View larger
Images are for illustrative purposes only. Please refer to data sheet for details

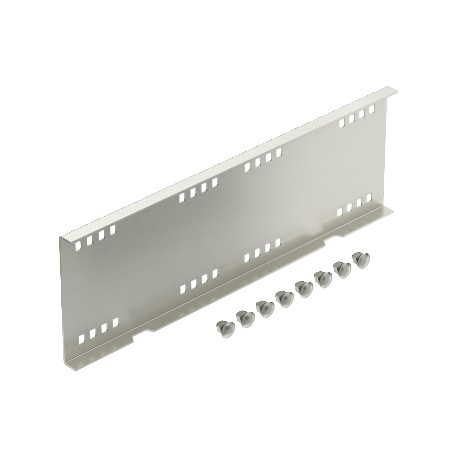

WRVL 160 VA4571 6227730 OBO BETTERMANN Straight connector for wide span system 160, 160x500, Stainless steel..
WRVL 160 VA4571
6227730
OBO BETTERMANN
2 Pcs.
Straight connector for wide span system 160, 160x500, Stainless steel, grade 316 Ti, VA, 1.4571
Straight connector A4. Straight connector for straight connections of cable trays, wide span cable trays and ladders with a side height of 160 mm.
Cables > Connector for cable support system
Tray wide span
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,2414 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Connection type | Screw connector |
| Dimension | 160x500 |
| Height | 160 mm |
| Length | 500 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Plate thickness | 2,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Suitable for cable tray system height | 160 mm |
| Suitable for mesh cable tray | no |
| Surface | Bright, treated |
| Version for | Straight connector |
| Width | 20 mm |
