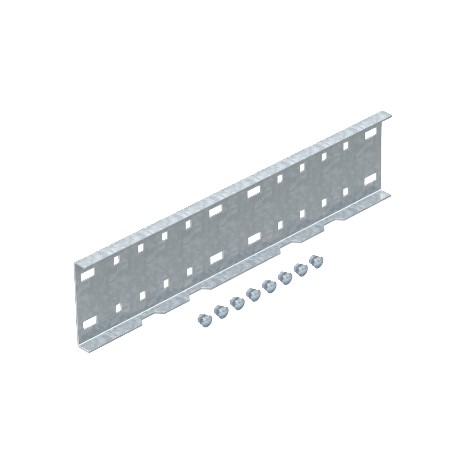

OBO BETTERMANN WRVL 110 FS WRVL 110 FS 6091164 OBO BETTERMANN Straight connector for wide span system 110, 110x500, Strip-galvanised, D.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRVL 110 FS 6091164 OBO BETTERMANN Straight connector for wide span system 110, 110x500, Strip-galvanised, D..

WRVL 110 FS

6091164

OBO BETTERMANN

2 Pcs.

Straight connector for wide span system 110, 110x500, Strip-galvanised, DIN EN 10147, Steel, St Straight connector FS. Straight connector for straight connections of cable trays, wide span cable trays and ladders with a side height of 110 mm.

Cables > Connector for cable support system
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A straight connector for wide span system 110, part number WRVL 110 FS from Obo Bettermann, is applied to couple industrial-grade wide-span cable trays securely and maintain structural load ratings.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,6027 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 110x500
  • Height: 110 mm
  • Length: 500 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 2,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Suitable for cable tray system height: 110 mm
  • Suitable for mesh cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate3,6027 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension110x500
Height110 mm
Length500 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness2,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for cable tray system height110 mm
Suitable for mesh cable trayno
SurfaceStrip galvanized
Version forStraight connector
Width20 mm
