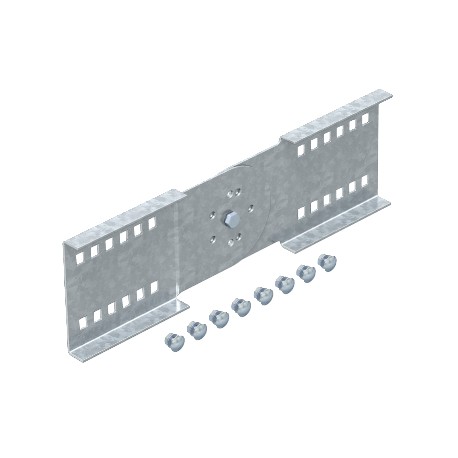

OBO BETTERMANN WRGV 110 FT WRGV 110 FT 6091334 OBO BETTERMANN Adjustable connector for wide span system 110, 110x380, Hot-dip galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

WRGV 110 FT 6091334 OBO BETTERMANN Adjustable connector for wide span system 110, 110x380, Hot-dip galvanise..

WRGV 110 FT

6091334

OBO BETTERMANN

2 Pcs.

Adjustable connector for wide span system 110, 110x380, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Adjustable connector FT. Adjustable connector for wide span cable trays and ladders with a side height of 110 mm.

Cables > Connector for cable support system
Tray wide span

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann WRGV 110 FT adjustable connector is designed for wide-span cable support systems requiring precise vertical alignment adjustments. This hardware accommodates complex routing geometries in heavy industrial plants. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: yes
  • CO2 Footprint (GWP) Cradle-to-Gate: 3,7162 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: 110x380
  • Height: 110 mm
  • Length: 380 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 2,5 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: yes
  • Suitable for cable tray: yes
  • Suitable for cable tray system height: 110 mm
  • Suitable for mesh cable tray: no

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalyes
CO2 Footprint (GWP) Cradle-to-Gate3,7162 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
Dimension110x380
Height110 mm
Length380 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness2,5 mm
Rustproof steel, pickledno
Suitable for cable ladderyes
Suitable for cable trayyes
Suitable for cable tray system height110 mm
Suitable for mesh cable trayno
SurfaceHot-dip galvanised
Version forStraight connector
Width20 mm
